NorDav Davit H-HD modell

 'NorDav H-HD (2022)

316L Rustfritt stål, komplett med bolter til dekk, 2ea Hamatech 304 stainless steel ratchet straps "endless"
Standard alutelescope, TR7 Goliath galv winch & 304 stainless side hinged telescope lock.

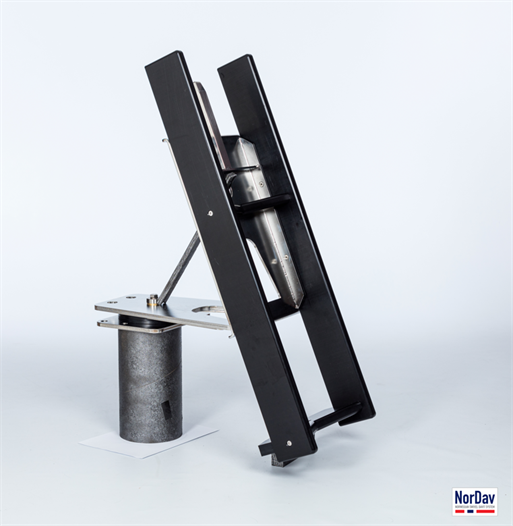

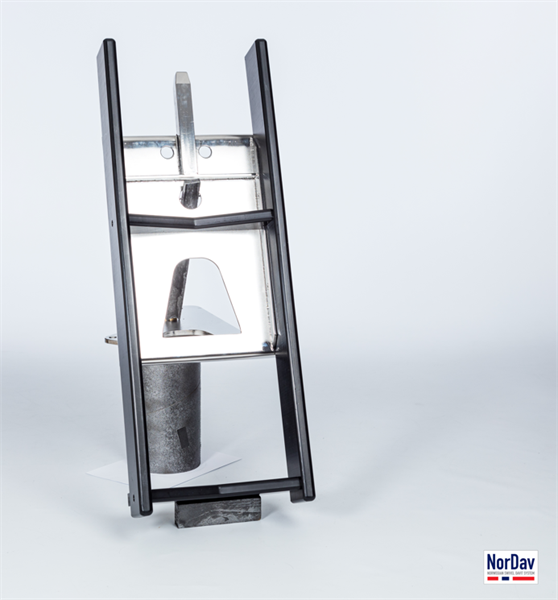

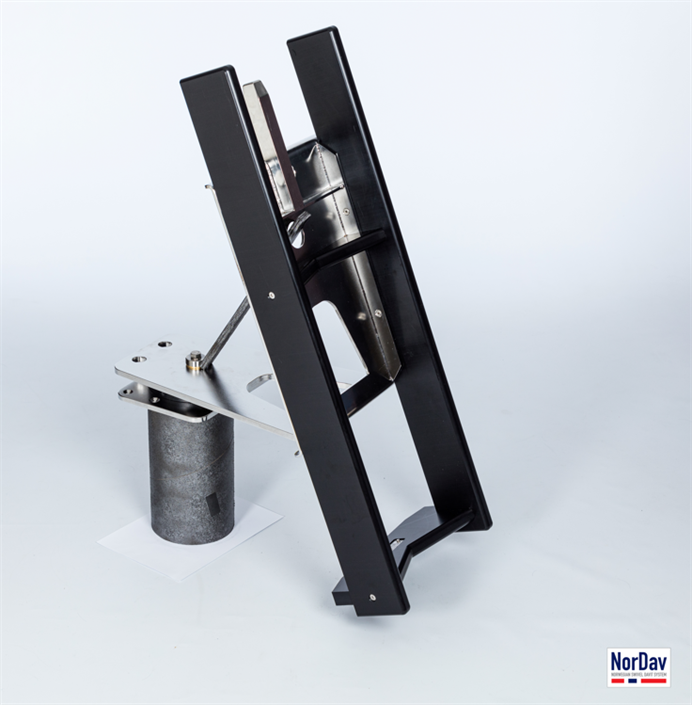

Norwegian Swivel Davit System H- Model HD
Enheten har blitt funktjonstestet med swivel- og vippe­funksjon.
Anvendt testlast: 500kg

The current item has been tesled with swivel- and hinge function Test load: 500 kg

Technical data
Dimensions:                                                         93 x 35 x 15 cm.
Max. Load capacity:                                            500kg/ 1100 lbs
Weight (approximate, varies with model)    28 kg/62 lbs

Material/shipping:
Support beams                                  -         Polyethylene black or white
Main bearing swivel frame              -         Electropolished 316L Stainless steel
Winch Telescope standard              -         Aluminium/304 D-lock-pin
Winch type standard                        -         Tr7 Goliath
Shipped in custom carboard box  -         Optional wood crate box
Shipping weight                                -          35 kg/77 lbs

Optional:
Winch 12V w/wireless remote control     -     Various types available
HD Telescopic winch handle 350kg+        -     Alu-3part and 304 D-lock-pin
XL Telescopic winch handle                        -     Alu-2part and 304 D-lock-pin
