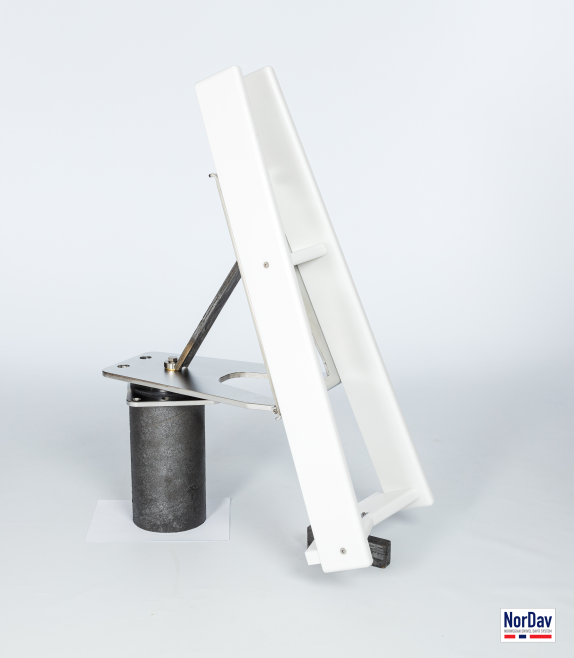

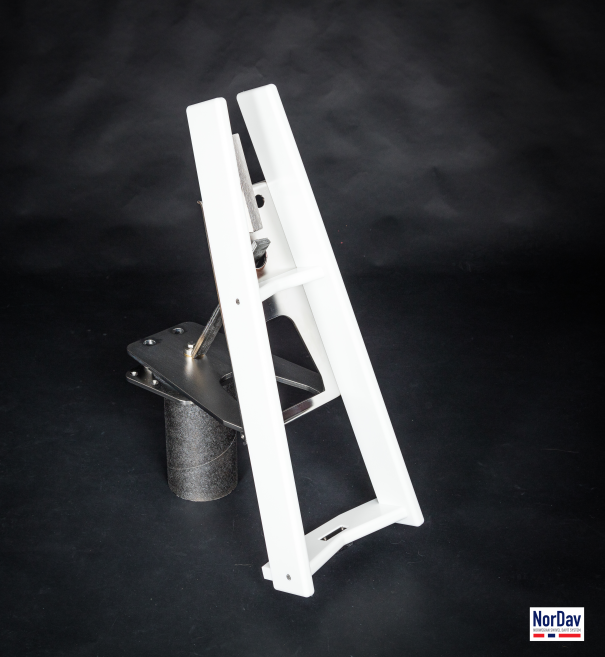

NorDav Davit V modell

'NorDav V (2022)

316L Rustfritt stål, komplett med bolter til dekk, 2ea Hamatech 304 stainless steel ratchet straps "endless"
Standard alutelescope, TR7 Goliath galv winch & 304 stainless side hinged telescope lock.

Norwegian Swivel Davit System
V - Model Standard - Load Capacity 350 kg
Enheten har blitt funktjonstestet med swivel- og vippe­funksjon.
Anvendt testlast: 410kg

The current item has been tested with swivel- and hinge function Test load: 410 kg

Data
Dimensions:                                                            93 x 35 x 15 cm.
Max. Load capacity:                                               350 kg/770 lbs
Weight (approximate, varies with model)       22 kg/48 lbs

Material/shipping:
Support beams                                    -          Polyethylene black or white

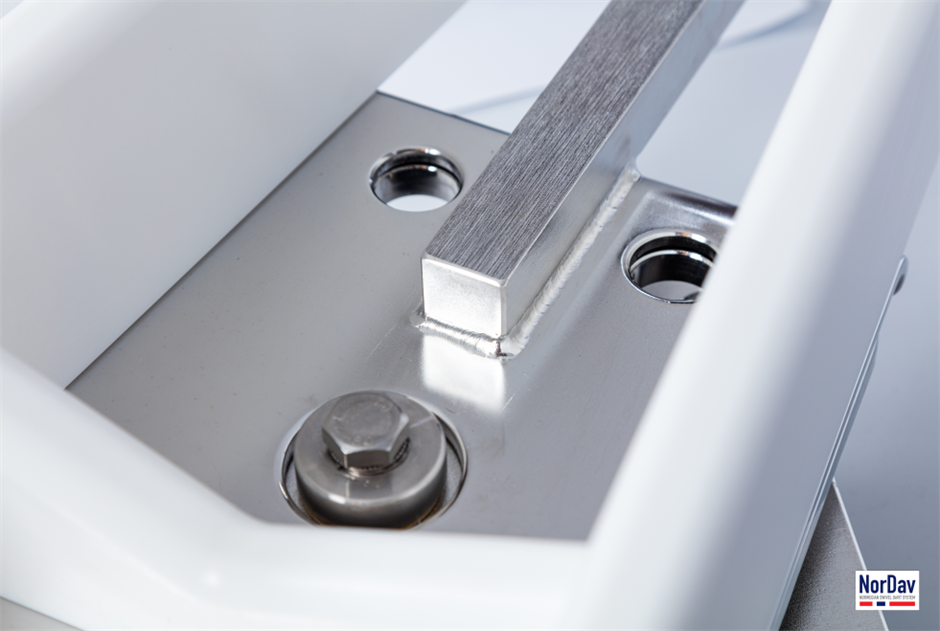

Main bearing swivel frame                -           Electropolished 316L Stainless steel
Winch Telescope standard 350kg   -           Aluminium/304 D-lock-pin
Winch type standard                          -           Tr7 Goliath
Shipping weight in carboard box     -          30 kg/66 lbs

Options:
Winch 12V w/wireless remote control         -          Various types available
HD Telescopic winch handle 350kg+           -          Alu-3part and 304 lock-pin
XL Telescopic winch handle                           -          Alu-2part and 304 lock-pin
Shipping packing                                              -          Custom wood crate
